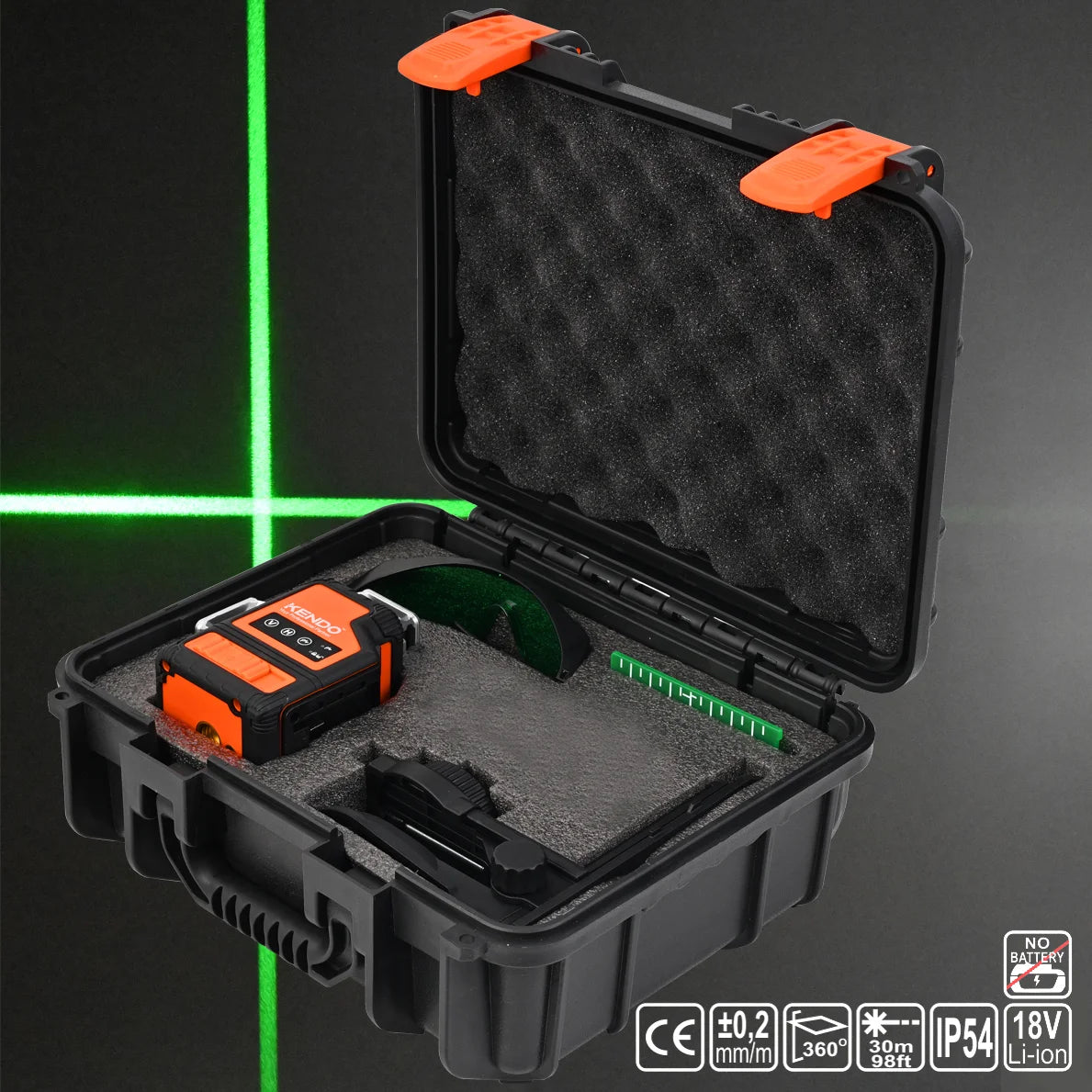

KENDO 35547 3x360° 3D Self Levelling Cross Line Laser

KENDO 35547 – Professional 3D 3x360° Self-Levelling Laser Level, 30m / 100ft

The KENDO 35547 is an industrial-grade 3D layout tool designed for comprehensive room alignment. This high-performance laser projects three 360° planes simultaneously (one horizontal and two vertical), creating a complete 3D grid that allows for simultaneous floor, wall, and ceiling layout from a single point. Part of a professional cordless system, it is powered by an 18V Li-ion battery, offering extended runtime for large-scale construction projects. Featuring a Pulse Mode for use with detectors, this tool is the ultimate solution for drywallers, commercial tilers, and structural framers.

Available Model:

• Model: 35547 (Body Only)

• Working Range: 30 m / 100 ft

• Barcode: 6903366355477

Technical Specifications:

• Brand: KENDO

• Product Type: 3D Self-Levelling 3x360° Laser Level

• Laser Class: Class 2 (Safe for general use)

• Working Range: 30 meters (approx. 100 feet)

• Planes: 1 x 360° Horizontal / 2 x 360° Vertical

• Power Source: 18V Li-ion Battery (Not Included)

• Protection Rating: IP54 (Dust & Splash Proof)

• Operating Modes: Self-Levelling, Manual Lock, and Pulse Mode

• Certification: CE Approved

Key Features:

• Full 3D Room Coverage: Projects three interlocking 360-degree lines, providing 90-degree intersections on the floor and ceiling for perfect plumbing and squaring.

• 18V High-Performance Power: Designed for the professional user, utilizing high-capacity 18V batteries for multi-day usage on a single charge.

• Pulse Mode Capability: Can be paired with a laser receiver (detector) to extend the working range or for use in bright outdoor conditions where the beam may be less visible.

• IP54 Industrial Housing: Reinforced with rubber overmolding to protect the high-precision laser diodes from dust, moisture, and accidental drops.

• Precision Self-Levelling: The magnetic pendulum system levels automatically; a built-in alarm notifies the user if the unit is outside its leveling range.

• Manual/Incline Mode: Allows the laser to be used at any angle, perfect for installing stair railings, diagonal flooring, or sloped ceilings.
