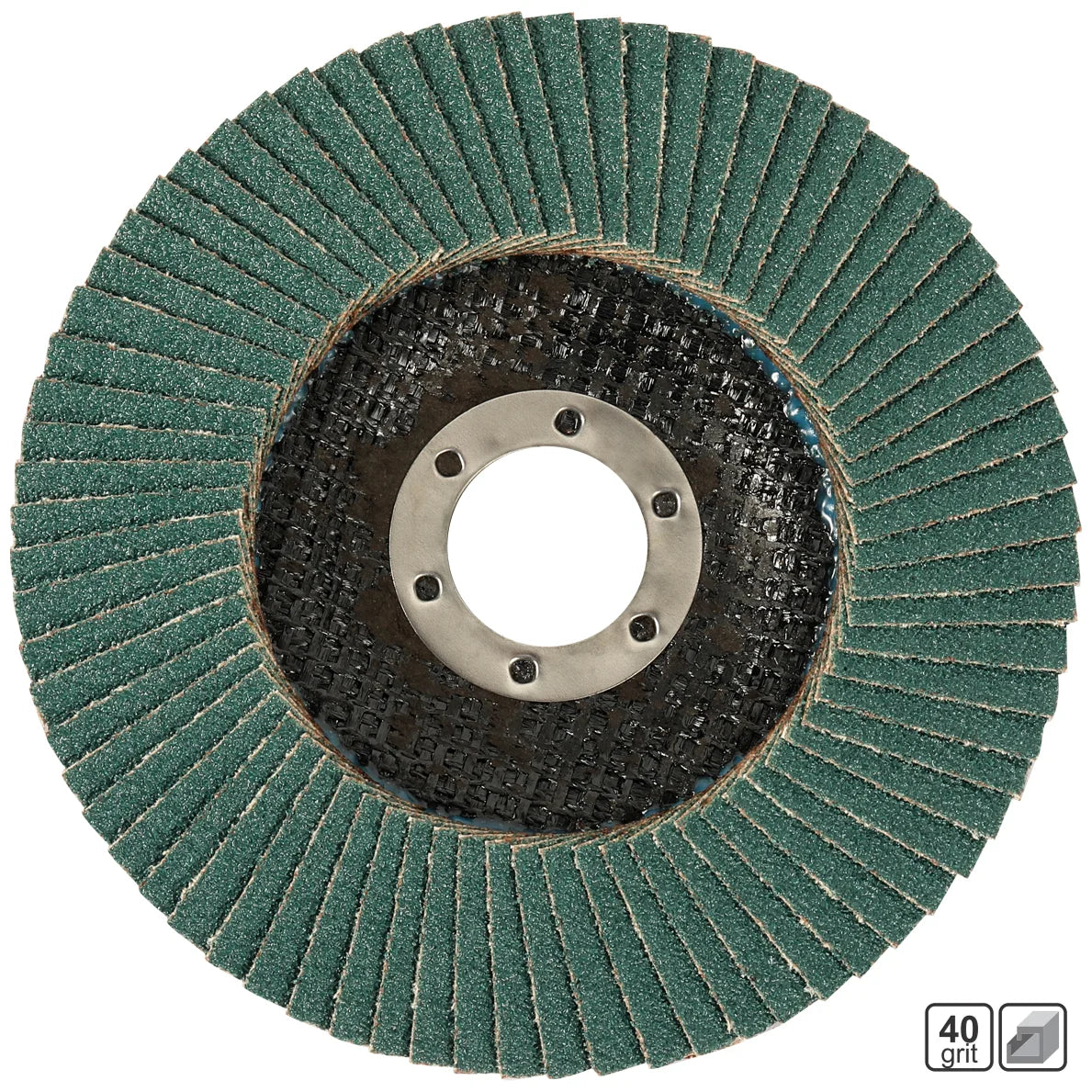

KENDO (280) 77804041 T29 Angled Flap Disc 15x1x22.23mm. 40#

KENDO Professional Zirconia Angled Flap Disc | 115mm | Grit 40

High-Performance Aggressive Stock Removal & Weld Blending

The KENDO 77804041 (280) is a professional-grade, conical-profile (Type 29) flap disc engineered for heavy-duty grinding, rapid material removal, and edge shaping. Utilizing premium Zirconia Alumina (Zirconium), this disc is designed to withstand extreme heat and high pressure, outlasting standard aluminum oxide alternatives. The specialized angled geometry makes it the ideal choice for heavy fabrication work, weld-seam leveling, and aggressive blending on Stainless Steel (Inox), Carbon Steel, and Tough Metal Alloys.

Model Details:

• Model Number: 77804041 (280)

• Barcode: 6903366443211

• Dimensions: 115mm x 22.23mm (4.5")

• Grit Size: #40 Coarse

• Shape: Type 29 (Conical / Angled)

• Abrasive Material: Zirconia Alumina

Key Features:

• Conical Angled Design (Type 29): The built-in $15^\circ$ angle of the flaps provides a built-in advantage for contouring and edge grinding. It maximizes surface contact when the angle grinder is held at an ergonomic working slope ($15^\circ$ to $25^\circ$), allowing for much faster material removal with less operator fatigue.

• Self-Sharpening Zirconia Grain: Engineered for high-pressure industrial environments. The zirconium particles micro-fracture under stress to constantly expose new sharp points, preventing the disc from glazing over and ensuring a highly aggressive bite throughout its working life.

• Aggressive #40 Grit: Formulated for maximum stock removal. Perfect for shaving down massive weld beads, removing heavy slag, edge beveling, and stripping away thick scale or rust layers.

• Inox-Safe cool Cut: Designed to limit heat buildup, preventing structural warping or the undesirable "blueing" discoloration on heat-sensitive materials like stainless steel.

• High-Strength Fiberglass Backing: Absorbs mechanical vibrations and guarantees uniform structural integrity, ensuring smoother operation and uniform wear on the abrasive flaps.

Technical Specifications:

• Diameter: 115mm

• Bore Diameter: 22.23mm (Standard angle grinder spindle)

• Abrasive Mineral: Zirconia Alumina

• Profile: Depressed/Conical (T29)

• Primary Compatibility: Stainless Steel, Structural Iron, High-Alloy Steels, Cast Iron.

Safety & Usage Instructions:

• Operating Angle: For optimal results, maintain a working angle between $15^\circ$ and $25^\circ$ to utilize the full surface area of the angled flaps.

• Pressure: Apply firm, steady downward pressure. Zirconia grains require sufficient mechanical force to active their self-sharpening properties.

• PPE Mandatory: Metal grinding produces fine dust and a high volume of sparks. Always wear high-impact safety goggles or a face shield, heavy-duty leather gloves, a dust mask, and hearing protection.
