CGW Diamond Cutting Discs

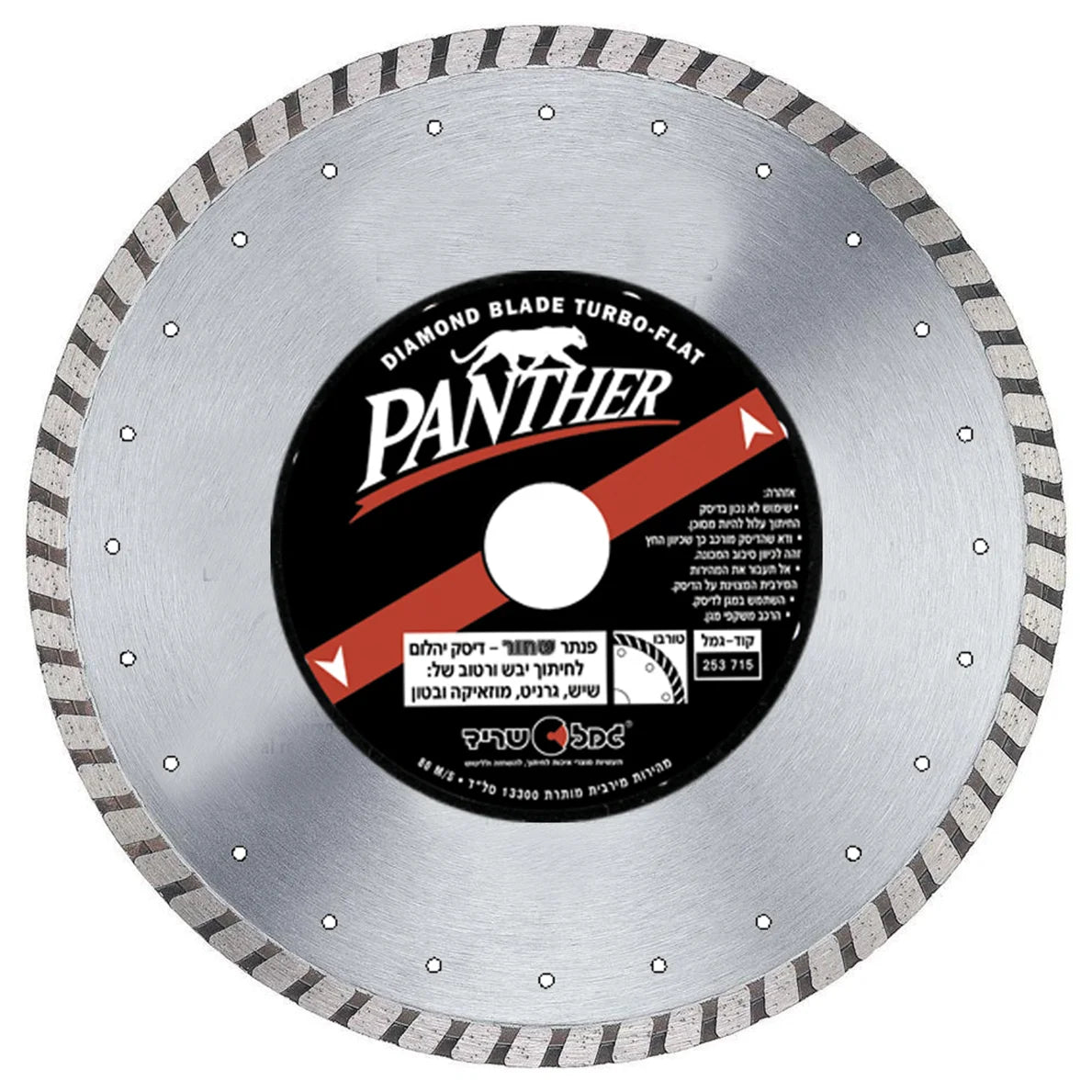

CGW Black Panther Professional Diamond Blade | 230mm Turbo | Granite & Marble

Premium Industrial Strength for the Hardest Natural Stones

The CGW (Camel Grinding Wheels) Black Panther (43) series is a top-tier diamond cutting solution engineered specifically for high-performance fabrication in Granite and Marble. Featuring an aggressive Turbo-Rim design and a specialized hot-pressed bond, this blade is designed to deliver surgical precision and rapid cutting speeds. The "Black Panther" is the professional's choice for large-scale slab cutting and heavy masonry work where a balance of speed, durability, and a high-quality edge finish is non-negotiable.

Model Details:

• Series: Black Panther

• Barcode: 7296166844869

• Dimensions: 230mm x 2.6mm (Thickness) / 7mm (Segment Height)

• Rim Type: Turbo Segmented

Key Features:

• High-Speed Turbo Rim: The serrated turbo edge significantly reduces friction and facilitates the immediate removal of dust and slurry from the cutting path. This results in a faster, cooler cut compared to standard diamond blades.

• Specialized for Natural Stone: Specifically formulated for the density of granite and the delicate nature of marble. The 7mm segment height provides a long service life and consistent performance through thousands of linear meters.

• 2.6mm Heavy-Duty Core: The reinforced steel body provides the necessary rigidity for 230mm (9-inch) grinders, preventing blade deflection or "wobble" during deep cuts in thick slabs.

• Hot-Pressed Technology: The diamond segments are bonded under extreme heat and pressure, ensuring they remain securely attached to the core even under the high mechanical stress of industrial stone fabrication.

• Clean Edge Finish: Despite its aggressive speed, the turbo design minimizes the risk of heavy chipping on the stone’s surface, leaving a cleaner edge that requires less polishing time.

Technical Specifications:

• Diameter: 230mm

• Segment Height: 7mm

• Thickness: 2.6mm

• Bore Hole: Standard for large angle grinders

• Application: Granite, Marble, Natural Stone, Hard Concrete, and Masonry.

Safety & Usage Instructions:

• Cooling: While designed for high-performance dry cutting, using water will significantly extend the life of the diamond segments and virtually eliminate silica dust.

• Feed Pressure: Allow the weight of the 9-inch grinder to provide the cutting pressure. Forcing the blade can cause the diamond matrix to "glaze" or the core to overheat.

• Mounting: Ensure the mounting flanges are clean and the blade is installed in the correct direction of rotation.

• PPE Mandatory: Cutting stone creates high-velocity debris and hazardous dust. A P3-rated respirator, safety goggles, and hearing protection are strictly required.
