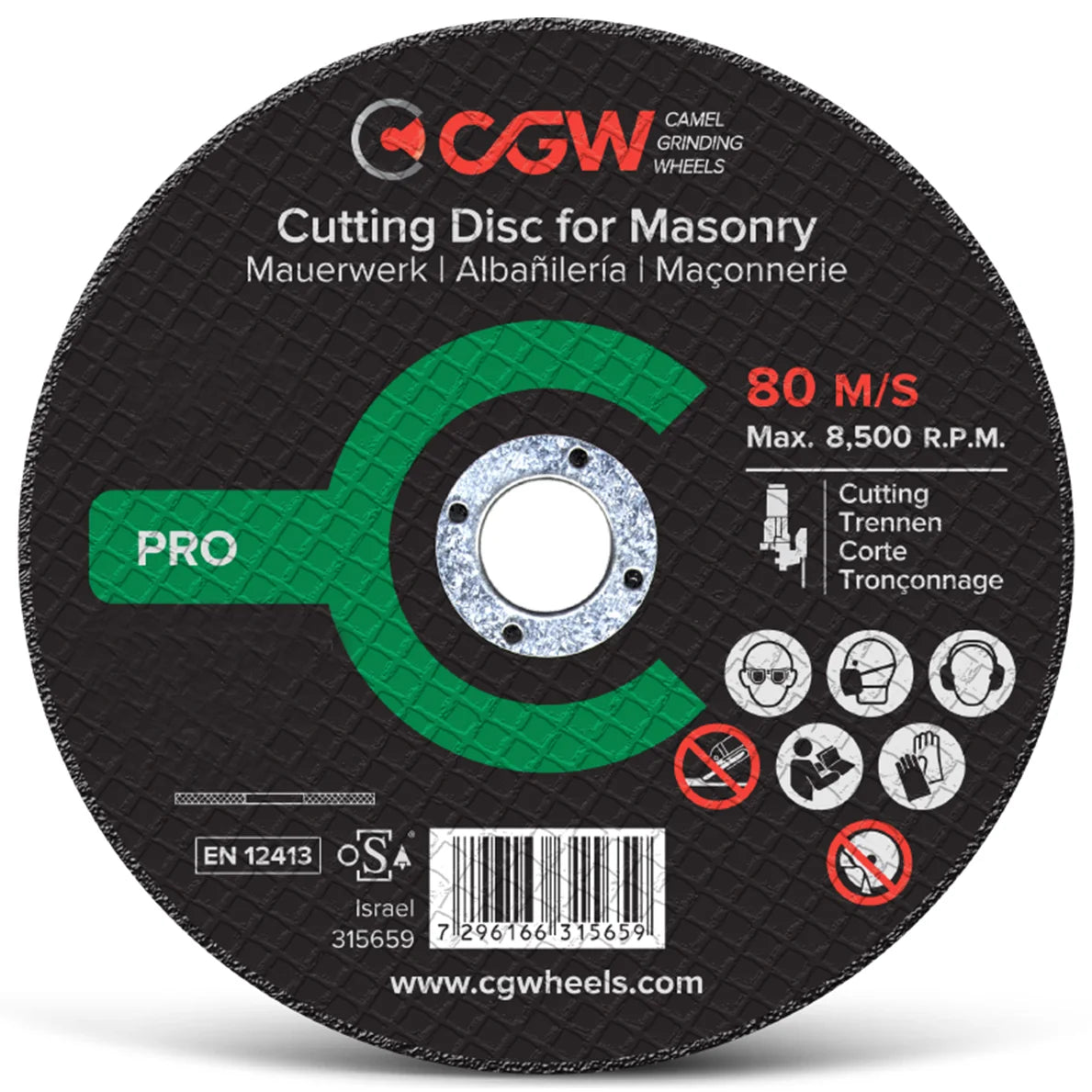

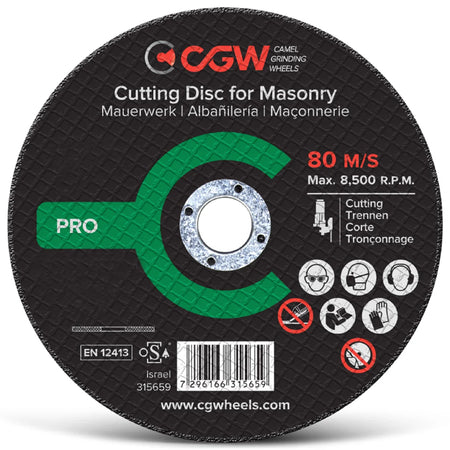

CGW Cutting Discs for Masonry (silicon carbide) - T41

CGW Professional Silicon Carbide Cutting Disc | 180 x 3.2mm | Masonry & Stone

Industrial Strength Performance for Concrete, Bricks, and Natural Stone

The CGW (Camel Grinding Wheels) T41 series masonry cutting disc is a high-grade abrasive wheel engineered for heavy-duty performance in building and construction applications. Utilizing premium Silicon Carbide (C), which is significantly harder and sharper than standard aluminum oxide, this disc is specifically optimized for cutting through dense, non-metallic building materials. With a stable 3.2mm thickness and a flat profile, it delivers straight, secure, and aggressive cuts through tough structural brick and masonry work.

Model Details:

• Specification: C 24 RBF

• Barcode: 7296166315659

• Dimensions: 180mm x 3.2mm x 22.23mm

• Shape: Flat (Type 41)

• Abrasive Material: Silicon Carbide

Key Features:

• Premium Silicon Carbide (C) Grain: Engineered with a coarse 24-grit silicon carbide matrix. This ultra-hard mineral fractures cleanly under pressure to constantly expose new sharp cutting edges, preventing the disc from glazing over when cutting brittle masonry.

• Rigid 3.2mm Stability: The heavy-duty thickness provides exceptional structural rigidity, preventing the wheel from flexing, wandering, or binding during deep plunge cuts in solid stone blocks or concrete walls.

• High-Speed Industrial Safety: Fully rated for standard 80m/s operations, this disc features high-tensile fiberglass mesh reinforcement layers to ensure maximum structural integrity and operator safety under severe construction conditions.

• Long Lasting R-Grade Bond: The professional resinoid bond (BF) with an "R" hardness rating securely holds the abrasive grains, ensuring maximum cuts per disc and outstanding cost-per-cut efficiency on the job site.

• Versatile Masonry Applications: Highly effective for cutting through concrete blocks, clay bricks, sandstone, fieldstone, roof tiles, and asphalt.

Technical Specifications:

• Diameter: 180mm (7")

• Thickness: 3.2mm

• Bore Diameter: 22.23mm

• Maximum Peripheral Speed: 80m/s

• Bond Type: Resinoid Reinforced (BF)

Safety & Usage Instructions:

• Mounting: Ensure the grinder's 22.23mm spindle flange is completely clean before mounting the disc. Secure the locking nut firmly.

• Cutting Technique: Maintain a strict 90-degree angle to the workpiece. Let the sharp silicon carbide grains pull themselves through the material—avoid applying excessive downward pressure, which can overheat the tool's motor.

• Constraint: This is a cutting disc only. Despite its heavy 3.2mm profile, it is strictly forbidden to use the face of the disc for surface grinding or deburring.

• PPE Mandatory: Cutting masonry releases dense, harmful crystalline silica dust and sharp stone chips. A high-quality respirator mask (P2/P3), sealed safety goggles, heavy-duty gloves, and hearing protection are strictly required.
