CGW Chop Saw Cutting Discs for Stainless Steel (white alum. oxide)

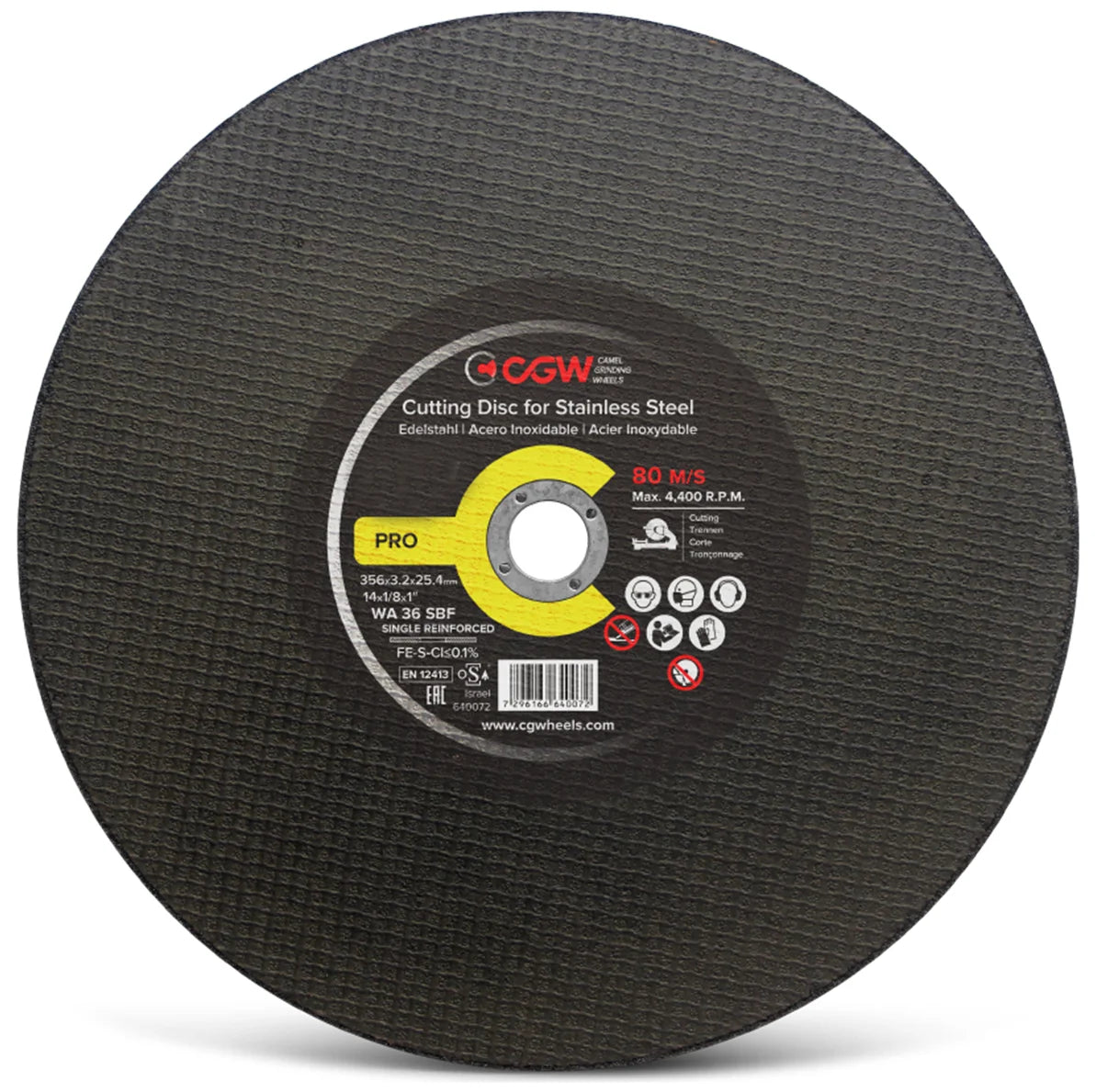

CGW Professional Chop Saw Cutting Disc | 356 x 3.2mm | Stainless Steel

Premium White Aluminum Oxide for Clean, Inox-Safe Heavy Cutting

The CGW (Camel Grinding Wheels) industrial cutting disc is a high-performance solution specifically engineered for stationary chop saws. Developed with high-purity White Aluminum Oxide (WA), this wheel is the professional standard for cutting Stainless Steel (Inox) and high-alloy steels. The specialized WA 36 SBF formulation ensures an exceptionally cool cut, preserving the anti-corrosive properties of the steel and providing a surgical finish on large-scale industrial profiles.

Model Details:

• Specification: WA 36 SBF

• Barcode: 7296166640072

• Dimensions: 356mm x 3.2mm x 25.4mm (14")

• Abrasive Material: White Aluminum Oxide

Key Features:

• White Aluminum Oxide (WA) Purity: Unlike standard brown aluminum oxide, White Alumina is friable and stays cooler during operation. This prevents thermal damage and the "blueing" of stainless steel, ensuring the metal remains untainted and rust-resistant.

• Inox-Certified Formula: Guaranteed to be free of iron (Fe), sulfur (S), and chlorine (Cl). This is critical for stainless steel fabrication to prevent cross-contamination and future oxidation on the cut edges.

• 3.2mm Heavy-Duty Thickness: Provides maximum stability and rigidity for deep cuts in thick-walled pipes, solid bars, and heavy structural beams. The added thickness prevents disc deflection (bending) during high-pressure cycles.

• SBF Bond Technology: Features a specialized resinoid bond (BF) with an "S" hardness grade, optimized for high-speed stationary cutting. This balances long disc life with a consistently aggressive bite.

• High-Speed Safety: Rated for 80m/s peripheral speed, meeting rigorous international safety standards for industrial abrasive wheels.

Technical Specifications:

• Diameter: 356mm (Standard 14 inch)

• Thickness: 3.2mm

• Bore Diameter: 25.4mm (1 inch)

• Application: Stainless Steel (Inox), High-Alloy Steels, Hardened Metals

• Machine Compatibility: High-speed stationary chop saws and cut-off machines

Safety & Usage Instructions:

• Machine Set-up: Verify that the chop saw's spindle is exactly 25.4mm. Ensure the spark guard is functional and positioned to protect the workspace.

• Clamping: Always use the machine's vice to lock the workpiece. Stainless steel can be slippery; a secure clamp is essential for a straight, safe cut.

• Constant Pressure: Apply firm, steady downward pressure. Do not "bounce" the wheel on the metal, as this can lead to uneven wear or fractures.

• Mandatory PPE: Cutting stainless steel produces extremely hot sparks. Always wear a full face shield, fire-retardant clothing, heavy-duty gloves, and hearing protection.
